Thor Motor Coach Chateau Motor Home Class C

Previous
Next
1 of 22

The Chateau Class C gas motorhome by Thor Motor Coach sets a new standard of comfortable living in many different ways. Based on your family size and travel needs, it's easy to find a floorplan that's right for you. Each model provides a premium one-piece TPO roof, a slick fiberglass exterior with a standard graphics package or an HD-MAX exterior with graphics, and flush-mount radius compartment doors. Plus, several models have the choice between a Ford E-Series or Chevrolet chassis.

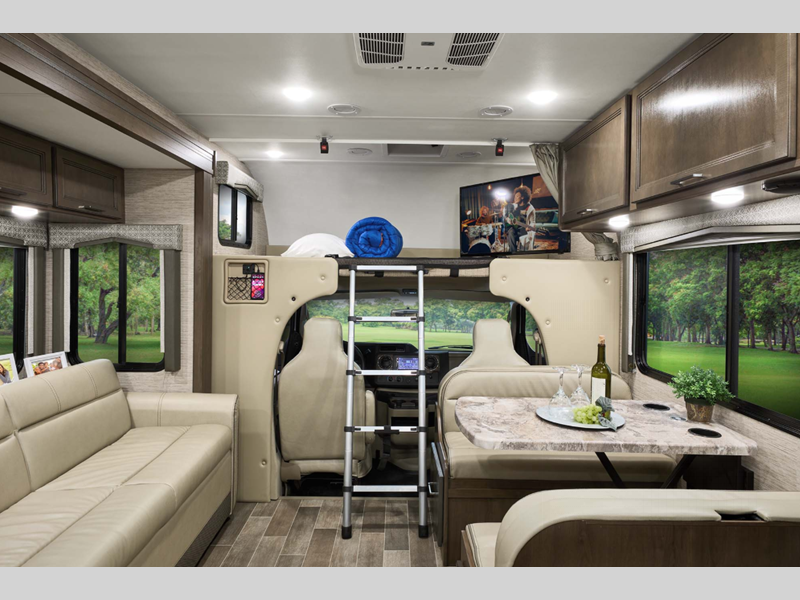

The interior is just as accommodating with its 84" ceiling height, residential vinyl flooring, and high-sheen cabinetry with nickel-finish hardware. The LED lighting illuminates the interior through rain or shine, and the smoke, LPG, and carbon monoxide detectors will give you peace of mind as you travel because they will alert you to those unforeseen mishaps.

When comparing the Thor Motor Coach Chateau to other Class C brands, it will be easy to see that nothing else quite measures up in comfort, quality and value, so come choose yours today!

  • Chateau 28Z

    Chateau 28Z Floorplan Image

    Thor Motor Coach Chateau class C motorhome 28Z highlights: Touchscreen Dash ... more about Chateau 28Z

    Specifications

    Sleeps 7
    Slides 1
    Length 29 ft 11 in
    Ext Width 8 ft 3 in
    Ext Height 11 ft
    Int Height 7 ft
    Interior Color Fine China, Imperial, Saddleback
    Exterior Color Standard, Brilliant Blue, Tranquil Beige, Centennial Full Body Paint, Firestone Full Body Paint
    Hitch Weight 8000 lbs
    Gross Weight 14500 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 25 gals
    Black Water Capacity 26 gals
    Furnace BTU 30000 btu
    Generator Onan RV QG 4000
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford E-450
    Horsepower 305 hp
    Fuel Capacity 55 gals
    Wheelbase 212 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 420 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36"
    Number of Awnings 1
    LP Tank Capacity 40.9
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Basement Storage 99.9 cu. ft.
    TV Info LR 40" TV
    Awning Info 14' Electric with LED Lights
    Gross Combined Weight 22000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Chateau 22B

    Chateau 22B Floorplan Image

    Thor Motor Coach Chateau class C motorhome 22B highlights: Deluxe Exterior ... more about Chateau 22B

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Length 24 ft
    Ext Width 8 ft 3 in
    Ext Height 11 ft
    Int Height 7 ft
    Interior Color Fine China, Imperial, Saddleback
    Exterior Color Standard, Brilliant Blue, Tranquil Beige, Centennial Full Body Paint, Firestone Full Body Paint
    Hitch Weight 8000 lbs
    Gross Weight 12500 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 25 gals
    Black Water Capacity 29 gals
    Furnace BTU 19000 btu
    Generator Onan RV QG 4000
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford E-350
    Horsepower 305 hp
    Fuel Capacity 55 gals
    Wheelbase 158 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 420 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36"
    Number of Awnings 1
    LP Tank Capacity 40.9
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Basement Storage 30.9 cu. ft.
    TV Info Cab 40" TV
    Awning Info 15' Electric with LED Lights
    Gross Combined Weight 18500 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Chateau 22B Chevy

    Chateau 22B Chevy Floorplan Image

    Thor Motor Coach Chateau class C motorhome 22B highlights: Deluxe Exterior ... more about Chateau 22B Chevy

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Length 24 ft 6 in
    Ext Width 8 ft 3 in
    Ext Height 11 ft
    Int Height 7 ft
    Interior Color Fine China, Imperial, Saddleback
    Exterior Color Standard, Brilliant Blue, Tranquil Beige, Centennial Full Body Paint, Firestone Full Body Paint
    Hitch Weight 8000 lbs
    Gross Weight 12300 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 25 gals
    Black Water Capacity 29 gals
    Furnace BTU 19000 btu
    Generator Onan RV QG 4000
    Fuel Type Gasoline
    Engine Vortec 6.0L V8
    Chassis Chevrolet
    Horsepower 323 hp
    Fuel Capacity 57 gals
    Wheelbase 159 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 373 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36"
    Number of Awnings 1
    LP Tank Capacity 40.9
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Basement Storage 30.9 cu. ft.
    TV Info Cab 40" TV
    Awning Info 15' Electric with LED Lights
    Gross Combined Weight 16000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Chateau 22E

    Chateau 22E Floorplan Image

    Thor Motor Coach Chateau class C motorhome 22E highlights: Queen Denver Mattress ... more about Chateau 22E

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Length 24 ft
    Ext Width 8 ft 3 in
    Ext Height 11 ft
    Int Height 7 ft
    Interior Color Fine China, Imperial, Saddleback
    Exterior Color Standard, Brilliant Blue, Tranquil Beige, Centennial Full Body Paint, Firestone Full Body Paint
    Hitch Weight 8000 lbs
    Gross Weight 12500 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 37 gals
    Black Water Capacity 24.5 gals
    Furnace BTU 19000 btu
    Generator Onan RV QG 4000
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford E-350
    Horsepower 305 hp
    Fuel Capacity 55 gals
    Wheelbase 158 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 420 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36"
    Number of Awnings 1
    LP Tank Capacity 40.9
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Basement Storage 50.3 cu. ft.
    TV Info Cab 40" TV
    Awning Info 15' Electric with LED Lights
    Gross Combined Weight 18500 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Chateau 22E Chevy

    Chateau 22E Chevy Floorplan Image

    Thor Motor Coach Chateau class C motorhome 22E highlights: Queen Denver Mattress ... more about Chateau 22E Chevy

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Length 24 ft 6 in
    Ext Width 8 ft 3 in
    Ext Height 11 ft
    Int Height 7 ft
    Interior Color Fine China, Imperial, Saddleback
    Exterior Color Standard, Brilliant Blue, Tranquil Beige, Centennial Full Body Paint, Firestone Full Body Paint
    Hitch Weight 8000 lbs
    Gross Weight 12300 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 37 gals
    Black Water Capacity 24.5 gals
    Furnace BTU 19000 btu
    Generator Onan RV QG 4000
    Fuel Type Gasoline
    Engine Vortec 6.0L V8
    Chassis Chevrolet
    Horsepower 323 hp
    Fuel Capacity 57 gals
    Wheelbase 159 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 373 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36"
    Number of Awnings 1
    LP Tank Capacity 40.9
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Basement Storage 50.3 cu. ft.
    TV Info Cab 40" TV
    Awning Info 15' Electric with LED Lights
    Gross Combined Weight 16000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Chateau 23U

    Chateau 23U Floorplan Image

    Thor Motor Coach Chateau class A motorhome 23U highlights: Blu-Ray Player Denver ... more about Chateau 23U

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Length 24 ft 10 in
    Ext Width 8 ft 3 in
    Ext Height 11 ft
    Int Height 7 ft
    Interior Color Fine China, Imperial, Saddleback
    Exterior Color Standard, Brilliant Blue, Tranquil Beige, Centennial Full Body Paint, Firestone Full Body Paint
    Hitch Weight 8000 lbs
    Gross Weight 12500 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 38.5 gals
    Black Water Capacity 24.5 gals
    Furnace BTU 19000 btu
    Generator Onan RV QG 4000
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford E-350
    Horsepower 305 hp
    Fuel Capacity 55 gals
    Wheelbase 158 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 420 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36"
    Number of Awnings 1
    LP Tank Capacity 40.9
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Basement Storage 69.5 cu. ft.
    TV Info Cab 40" TV
    Awning Info 15' Electric with LED Lights
    Gross Combined Weight 18500 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Chateau 23U Chevy

    Chateau 23U Chevy Floorplan Image

    Thor Motor Coach Chateau class A motorhome 23U highlights: Blu-Ray Player Denver ... more about Chateau 23U Chevy

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Length 25 ft 4 in
    Ext Width 8 ft 3 in
    Ext Height 11 ft
    Int Height 7 ft
    Interior Color Fine China, Imperial, Saddleback
    Exterior Color Standard, Brilliant Blue, Tranquil Beige, Centennial Full Body Paint, Firestone Full Body Paint
    Hitch Weight 8000 lbs
    Gross Weight 12300 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 38.5 gals
    Black Water Capacity 24.5 gals
    Furnace BTU 19000 btu
    Generator Onan RV QG 4000
    Fuel Type Gasoline
    Engine Vortec 6.0L V8
    Chassis Chevrolet
    Horsepower 323 hp
    Fuel Capacity 57 gals
    Wheelbase 159 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 373 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36"
    Number of Awnings 1
    LP Tank Capacity 40.9
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Basement Storage 69.5 cu. ft.
    TV Info Cab 40" TV
    Awning Info 15' Electric with LED Lights
    Gross Combined Weight 16000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Chateau 24F

    Chateau 24F Floorplan Image

    Thor Motor Coach Chateau class C motorhome 24F highlights: Full-Wall Slide 76" ... more about Chateau 24F

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Length 24 ft 11 in
    Ext Width 8 ft 3 in
    Ext Height 11 ft 2 in
    Int Height 7 ft
    Interior Color Fine China, Imperial, Saddleback
    Exterior Color Standard, Brilliant Blue, Tranquil Beige, Centennial Full Body Paint, Firestone Full Body Paint
    Hitch Weight 8000 lbs
    Gross Weight 12500 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 37 gals
    Black Water Capacity 34.5 gals
    Furnace BTU 30000 btu
    Generator Onan RV QG 4000
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford E-350
    Horsepower 305 hp
    Fuel Capacity 55 gals
    Wheelbase 168 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 420 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36"
    Number of Awnings 1
    LP Tank Capacity 40.9
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Basement Storage 40 cu. ft.
    TV Info Cab 40" TV
    Awning Info 16' Electric with LED Lights
    Gross Combined Weight 18500 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Chateau 24F Chevy

    Chateau 24F Chevy Floorplan Image

    Thor Motor Coach Chateau class C motorhome 24F highlights: Full-Wall Slide 76" ... more about Chateau 24F Chevy

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Length 24 ft 5 in
    Ext Width 8 ft 3 in
    Ext Height 11 ft 2 in
    Int Height 7 ft
    Interior Color Fine China, Imperial, Saddleback
    Exterior Color Standard, Brilliant Blue, Tranquil Beige, Centennial Full Body Paint, Firestone Full Body Paint
    Hitch Weight 8000 lbs
    Gross Weight 14200 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 37 gals
    Black Water Capacity 34.5 gals
    Furnace BTU 30000 btu
    Generator Onan RV QG 4000
    Fuel Type Gasoline
    Engine Vortec 6.0L V8
    Chassis Chevrolet
    Horsepower 323 hp
    Fuel Capacity 57 gals
    Wheelbase 169 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 373 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36"
    Number of Awnings 1
    LP Tank Capacity 40.9
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Basement Storage 40 cu. ft.
    TV Info Cab 40" TV
    Awning Info 16' Electric with LED Lights
    Gross Combined Weight 20000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Chateau 25V

    Chateau 25V Floorplan Image

    Thor Motor Coach Chateau class C motorhome 25V highlights: Touchscreen Dash ... more about Chateau 25V

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Length 26 ft 5 in
    Ext Width 8 ft 3 in
    Ext Height 11 ft
    Int Height 7 ft
    Interior Color Fine China, Imperial, Saddleback
    Exterior Color Standard, Brilliant Blue, Tranquil Beige, Centennial Full Body Paint, Firestone Full Body Paint
    Hitch Weight 8000 lbs
    Gross Weight 12500 lbs
    Fresh Water Capacity 42 gals
    Grey Water Capacity 33 gals
    Black Water Capacity 30 gals
    Furnace BTU 30000 btu
    Generator Onan RV QG 4000
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford E-350
    Horsepower 305 hp
    Fuel Capacity 55 gals
    Wheelbase 176 in
    Number Of Bunks 1
    Available Beds Two Twin
    Torque 420 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 27" x 27"
    Number of Awnings 1
    LP Tank Capacity 40.9
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Basement Storage 65 cu. ft.
    TV Info Cab 40" TV
    Awning Info 17' 6" Electric with LED Lights
    Gross Combined Weight 18500 lbs
    Shower Type Neo-Angled
    Electrical Service 30 amp

    Similar Floorplans

  • Chateau 25V Chevy

    Chateau 25V Chevy Floorplan Image

    Thor Motor Coach Chateau class C motorhome 25V highlights: Touchscreen Dash ... more about Chateau 25V Chevy

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Length 26 ft 11 in
    Ext Width 8 ft 3 in
    Ext Height 11 ft
    Int Height 7 ft
    Interior Color Fine China, Imperial, Saddleback
    Exterior Color Standard, Brilliant Blue, Tranquil Beige, Centennial Full Body Paint, Firestone Full Body Paint
    Hitch Weight 8000 lbs
    Gross Weight 14200 lbs
    Fresh Water Capacity 42 gals
    Grey Water Capacity 33 gals
    Black Water Capacity 30 gals
    Furnace BTU 30000 btu
    Generator Onan RV QG 4000
    Fuel Type Gasoline
    Engine Vortec 6.0L V8
    Chassis Chevy
    Horsepower 323 hp
    Fuel Capacity 57 gals
    Wheelbase 177 in
    Number Of Bunks 1
    Available Beds Two Twin
    Torque 373 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 27" x 27"
    Number of Awnings 1
    LP Tank Capacity 40.9
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Basement Storage 65 cu. ft.
    TV Info Cab 40" TV
    Awning Info 17' 6" Electric with LED Lights
    Gross Combined Weight 20000 lbs
    Shower Type Neo-Angled
    Electrical Service 30 amp

    Similar Floorplans

  • Chateau 26B

    Chateau 26B Floorplan Image

    Thor Motor Coach Chateau class C motorhome 26B highlights: Rear Bathroom Single ... more about Chateau 26B

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 1
    Length 27 ft 6 in
    Ext Width 8 ft 3 in
    Ext Height 11 ft
    Int Height 7 ft
    Interior Color Fine China, Imperial, Saddleback
    Exterior Color Standard, Brilliant Blue, Tranquil Beige, Centennial Full Body Paint, Firestone Full Body Paint
    Hitch Weight 8000 lbs
    Gross Weight 12500 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 25 gals
    Black Water Capacity 29 gals
    Furnace BTU 30000 btu
    Generator Onan RV QG 4000
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford E-350
    Horsepower 305 hp
    Fuel Capacity 55 gals
    Wheelbase 183 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 420 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36"
    Number of Awnings 1
    LP Tank Capacity 40.9
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Basement Storage 40 cu. ft.
    TV Info Cab 40" TV
    Awning Info 18' Electric with LED Lights
    Gross Combined Weight 18500 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Chateau 26B Chevy

    Chateau 26B Chevy Floorplan Image

    Thor Motor Coach Chateau class C motorhome 26B highlights: Rear Bathroom Single ... more about Chateau 26B Chevy

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 1
    Length 28 ft
    Ext Width 8 ft 3 in
    Ext Height 11 ft
    Int Height 7 ft
    Interior Color Fine China, Imperial, Saddleback
    Exterior Color Standard, Brilliant Blue, Tranquil Beige, Centennial Full Body Paint, Firestone Full Body Paint
    Hitch Weight 8000 lbs
    Gross Weight 14200 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 25 gals
    Black Water Capacity 29 gals
    Furnace BTU 30000 btu
    Generator Onan RV QG 4000
    Fuel Type Gasoline
    Engine Vortec 6.0L V8
    Chassis Chevrolet
    Horsepower 323 hp
    Fuel Capacity 57 gals
    Wheelbase 184 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 373 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36"
    Number of Awnings 1
    LP Tank Capacity 40.9
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Basement Storage 40 cu. ft.
    TV Info Cab 40" TV
    Awning Info 18' Electric with LED Lights
    Gross Combined Weight 20000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Chateau 27R

    Chateau 27R Floorplan Image

    Thor Motor Coach Chateau class C motor home 27R highlights: King Denver Mattress ... more about Chateau 27R

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 1
    Length 28 ft 11 in
    Ext Width 8 ft 3 in
    Ext Height 11 ft
    Int Height 7 ft
    Interior Color Fine China, Imperial, Saddleback
    Exterior Color Standard, Brilliant Blue, Tranquil Beige, Centennial Full Body Paint, Firestone Full Body Paint
    Hitch Weight 8000 lbs
    Gross Weight 14500 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 37 gals
    Black Water Capacity 34.5 gals
    Furnace BTU 30000 btu
    Generator Onan RV QG 4000 Gas
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford E-450
    Horsepower 305 hp
    Fuel Capacity 55 gals
    Wheelbase 209 in
    Number Of Bunks 1
    Available Beds King
    Torque 420 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36"
    Number of Awnings 1
    LP Tank Capacity 40.9
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Basement Storage 55.5 cu. ft.
    TV Info Cab 40" TV
    Awning Info 20' Electric with LED Lights
    Gross Combined Weight 22000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Chateau 28E

    Chateau 28E Floorplan Image

    Thor Motor Coach Chateau class C motorhome 28E highlights: Two Slides ... more about Chateau 28E

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 2
    Length 28 ft 7 in
    Ext Width 8 ft 3 in
    Ext Height 11 ft
    Int Height 7 ft
    Interior Color Fine China, Imperial, Saddleback
    Exterior Color Standard, Brilliant Blue, Tranquil Beige, Centennial Full Body Paint, Firestone Full Body Paint
    Hitch Weight 8000 lbs
    Gross Weight 14500 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 22 gals
    Black Water Capacity 29 gals
    Furnace BTU 30000 btu
    Generator Onan RV QG 4000
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford E-450
    Horsepower 305 hp
    Fuel Capacity 55 gals
    Wheelbase 200 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 420 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36"
    Number of Awnings 1
    LP Tank Capacity 40.9
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Basement Storage 27.2 cu. ft.
    TV Info Cab 40" TV
    Awning Info 12' Electric with LED Lights
    Gross Combined Weight 22000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Chateau 30D

    Chateau 30D Floorplan Image

    Thor Motor Coach Chateau class C motorhome 30D highlights: Bunk Beds Two Slides ... more about Chateau 30D

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 2
    Length 32 ft 2 in
    Ext Width 8 ft 3 in
    Ext Height 11 ft
    Int Height 7 ft
    Interior Color Fine China, Imperial, Saddleback
    Exterior Color Standard, Brilliant Blue, Tranquil Beige, Centennial Full Body Paint, Firestone Full Body Paint
    Hitch Weight 8000 lbs
    Gross Weight 14500 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 31 gals
    Black Water Capacity 26 gals
    Furnace BTU 30000 btu
    Generator Onan RV QG 4000
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford E-450
    Horsepower 305 hp
    Fuel Capacity 55 gals
    Wheelbase 223 in
    Number Of Bunks 3
    Available Beds Queen
    Torque 420 ft-lb
    Refrigerator Type Double Door
    Cooktop Burners 3
    Shower Size 24" x 36"
    Number of Awnings 1
    LP Tank Capacity 40.9
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric DSI
    AC BTU 13500 btu
    Basement Storage 64.8 cu. ft.
    TV Info Cab 40" TV
    Awning Info 10' 6" Electric with LED Lights
    Gross Combined Weight 22000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Chateau 31E

    Chateau 31E Floorplan Image

    Take a Virtual Tour

    Thor Motor Coach Chateau class C motorhome 31E highlights: Glass-Door Shower ... more about Chateau 31E

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 1
    Length 32 ft 7 in
    Ext Width 8 ft 3 in
    Ext Height 11 ft 2 in
    Int Height 7 ft
    Interior Color Fine China, Imperial, Saddleback
    Exterior Color Standard, Brilliant Blue, Tranquil Beige, Centennial Full Body Paint, Firestone Full Body Paint
    Hitch Weight 8000 lbs
    Gross Weight 14500 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 28 gals
    Black Water Capacity 28 gals
    Furnace BTU 30000 btu
    Generator Onan RV QG 4000
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford E-450
    Horsepower 305 hp
    Fuel Capacity 55 gals
    Wheelbase 223 in
    Number Of Bunks 3
    Available Beds Queen
    Torque 420 ft-lb
    Refrigerator Type Double Door
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 32" x 32"
    Number of Awnings 1
    LP Tank Capacity 40.9
    Water Heater Type Instant Tankless
    AC BTU 15000 btu
    Basement Storage 55.7 cu. ft.
    TV Info Cab 40" TV, BR 32" TV, Bunk Bed (2) 15.5" TVs
    Awning Info 16' Electric with LED Lights
    Gross Combined Weight 22000 lbs
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

  • Chateau 31W

    Chateau 31W Floorplan Image

    Thor Motor Coach Chateau class C motorhome 31W highlights: Full-Wall Slide USB ... more about Chateau 31W

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 1
    Length 32 ft 2 in
    Ext Width 8 ft 3 in
    Ext Height 11 ft 2 in
    Int Height 7 ft
    Interior Color Fine China, Imperial, Saddleback
    Exterior Color Standard, Brilliant Blue, Tranquil Beige, Centennial Full Body Paint, Firestone Full Body Paint
    Hitch Weight 8000 lbs
    Gross Weight 14500 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 28 gals
    Black Water Capacity 28 gals
    Furnace BTU 30000 btu
    Generator Onan RV QG 4000
    Fuel Type Gasoline
    Engine 6.8L Triton V10
    Chassis Ford E-450
    Horsepower 305 hp
    Fuel Capacity 55 gals
    Wheelbase 223 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 420 ft-lb
    Refrigerator Type Residential
    Refrigerator Size 16 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 32" x 32"
    Number of Awnings 1
    LP Tank Capacity 40.9
    Water Heater Type Instant Tankless
    AC BTU 15000 btu
    Basement Storage 55.7 cu. ft.
    TV Info Cab 40" TV, BR 32" TV
    Awning Info 16' Electric with LED Lights
    Gross Combined Weight 22000 lbs
    Shower Type Radius
    Electrical Service 30 amp

    Similar Floorplans

  • Chateau 31Y

    Chateau 31Y Floorplan Image

    Take a Virtual Tour

    Thor Motor Coach Chateau class C motorhome 31Y highlights: Touchscreen Dash ... more about Chateau 31Y

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 7
    Slides 1
    Length 31 ft 3 in
    Ext Width 8 ft 3 in
    Ext Height 11 ft 2 in
    Int Height 7 ft
    Interior Color Fine China, Imperial, Saddleback
    Exterior Color Standard, Brilliant Blue, Tranquil Beige, Centennial Full Body Paint, Firestone Full Body Paint
    Hitch Weight 8000 lbs
    Gross Weight 14500 lbs
    Fresh Water Capacity 40 gals
    Grey Water Capacity 28 gals
    Black Water Capacity 28 gals
    Furnace BTU 30000 btu
    Generator Onan RV QG 4000
    Fuel Type Gas
    Engine 6.8L Triton V10
    Chassis Ford E-450
    Horsepower 305 hp
    Fuel Capacity 55 gals
    Wheelbase 212 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 420 ft-lb
    Refrigerator Type Double Door
    Convection Cooking Yes
    Cooktop Burners 3
    Shower Size 30" x 36"
    Number of Awnings 1
    LP Tank Capacity 40.9
    Water Heater Type Instant Tankless
    AC BTU 15000 btu
    Basement Storage 109.2 cu. ft.
    TV Info Cab 40" TV, BR 32" TV
    Awning Info 15' Electric with LED Lights
    Gross Combined Weight 22000 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

Chateau Features:

Standard Features



Construction & Exterior
  • Ford E-Series Chassis - 6.8L V10 305HP 420 lb-ft Torque (Optional) (Standard on Select Models)
  • Chevrolet Chassis - 6.0L V8 323HP 373 lb-ft Torque (Optional)
  • 8,000-lb. Trailer Hitch
  • Electric Stabilizing System (Optional) (Standard on Select Models)
  • Automatic Leveling Jacks with Touchpad Controls (Optional) (Standard on Select Models)
  • Welded Tubular Steel Floor
  • Welded Tubular Aluminum Roof & Sidewall Cage Construction
  • Vacu-Bond Laminated Roof, Walls & Floors w/Block Foam Insulation
  • One-Piece Fiberglass Front Cap
  • Slick Fiberglass Exterior with Standard Graphics Package (Select Models)
  • HD-MAX® Exterior with Graphics Package (Optional) (Standard on Select Models)
  • Full-Body Paint Package w/Protective Mask (Optional)
  • Exterior MEGA-Storage® Compartment
  • Portable Table in MEGA-Storage® Compartment (Select Models)
  • Lighted Rotocast Storage Compartments
  • Flush Mount Radius Compartment Doors
  • Premium One-Piece TPO Roof
  • Power Patio Awning with Integrated LED Lighting
  • Slide out Room Topper Awning(s) (Select Models)
  • Roof Ladder
  • Exterior Grab Handle
  • Entry Door with Deadbolt Lock
  • Black Framed Windows (Select Models)
  • Frameless Windows (Select Models)
Automotive & Cockpit
  • Touchscreen Dash Radio w/Back-Up Monitor, and Integrated Camera (Select Models)
  • Touchscreen Dash Radio w/Navigation, Back-Up Monitor, and Integrated Camera (Select Models)
  • Sirius Tuner and Antenna.
  • Upgrade Living area Speaker tied to Dash Stereo
  • Deluxe Exterior Mirrors (Select Models)
  • Heated/Remote Exterior Mirrors with Integrated Side View Cameras (Optional) (Standard on Select Models)
  • Power Windows & Door Locks
  • Cruise Control
  • Tilt Steering Wheel
  • Emergency Engine Start Switch
  • Map Light
  • Sun Visors
  • Windshield Privacy Curtain
  • Drink Holders
  • Three-point Seat Belts for the Driver & Passenger
  • Leatherette Captain's Chairs (Optional)
  • Swivel Captain’s Chairs with Filler Cushions (Select Models)
  • Power Driver's Seat (Ford Chassis Only) (Optional)
  • Cockpit Carpet Mat (Optional)
  • Keyless Entry System & Valve Stem Extenders (Optional) (Standard on Select Models)
  • Wheel Covers (Select Models)
  • Stainless Steel Wheel Liners (Optional) (Standard on Select Models)
  • Aluminum Running Boards
  • Wood Dash Applique (Optional)
Interior
  • 84” Interior Ceiling Height
  • Residential Vinyl Flooring
  • Rubber Tread Entry Steps with Lighted Step Well
  • Drop Down Stairwell Entrance Step
  • Metal Entry Grab Handle
  • Smoke, LPG, Carbon Monoxide Detectors
  • Fire Extinguisher
  • Hard Vinyl Ceiling
  • Ceiling Ducted Air Conditioning System (Select Models)
  • High-Sheen Cabinetry with Nickel Finish Hardware
  • Raised Panel Upper Cabinet Doors (Select Models)
  • Laminate Countertops (Select Models)
  • Pressed Laminate Countertops (Select Models)
  • LED Lighting
  • Recessed Wing Wall Net Box w/USB Charging port
  • Cab-Over Bunk Ladder
  • Cab-Over Child Safety Net (Optional)
  • Fabric Barrel Chair (Select Models)
  • Leatherette Jack-Knife Sofa (Select Models)
  • Leatherette Theater Seating Option IPO Sofa (Optional)
  • Leatherette Dream Dinette® Booth
  • Passenger Seat Belts in Select Areas
  • Single Child Safety Tether in Dinette (Optional)
  • Window Privacy Shades (Select Models)
  • Premium Window Privacy Roller Shades (Select Models)
  • Full Extension Metal Ball-Bearing Drawer Guides
  • 12-volt Attic Fan w/Cover in Cab-Over Bunk (Optional)
Kitchen
  • Double Door Gas/Electric RV Refrigerator (Select Models)
  • 16 cu. ft. Residential Refrigerator w/Ice Maker (Select Models)
  • Upgraded Recessed 3-Burner Gas Cooktop with Glass Cover (Select Models)
  • Upgraded Recessed 3-Burner Gas Cooktop/Oven with Glass Cover (Optional)
  • 2-Burner Gas Cooktop with Single Induction Cooktop (Select Models)
  • Protective Cover & Task Lighting Above Cooktop (Select Models)
  • Microwave Oven (Select Models)
  • Convection Microwave Oven (Optional)
  • 30” Over-the-Range Convection Microwave Oven (Select Models)
  • Solid Surface Kitchen Countertop (Select Models)
  • Pop-Up Countertop Outlet & Charging Center for Electronics (Select Models)
  • Flip-Up Countertop Extension (Select Models)
  • Large Single Bowl Stainless Steel Sink w/Single Handle Faucet w/Pull-Down Sprayer
  • Pantry (Select Models)
  • Kitchen Waste Basket
  • 12-volt Ceiling Vent in Kitchen with Under Cabinet Switch (Select Models)
Bedroom & Bathroom
  • Denver Mattress® Queen Size Bed (Select Models)
  • Denver Mattress® King Size Bed (Select Models)
  • Fabric Covered Twin Beds - Twin Beds Converts to Full Unit Width Bed (Select Models)
  • Bedspread and Pillow Shams (Select Models)
  • Bed Pillow Shams (Select Models)
  • Headboard (Select Models)
  • Bedroom USB Power Charging Center for Electronics
  • Bedroom 12V Outlet for CPAP Machine
  • Bunk Beds with Ladder (Select Models)
  • Bunk Beds with Ladder (Converts into Dinette) (Select Models)
  • Power Bath Vent w/Wall Switch Bath
  • Foot Flush Porcelain Toilet
  • Stainless Steel Bathroom Sink
  • Wallpaper Border Bath
  • Three Robe Hooks inside Bath
  • Skylight in Shower
  • Upgrade Shower Curtain (Select Models)
  • Shower with Curved Anti-Microbial Shower Curtain (Select Models)
  • Shower with Glass Door (Select Models)
  • 12-volt Attic Fan with Cover in Bedroom(Vent is Not Available w/Dual A/C Option) (Optional)
Entertainment
  • 40” TV on Manual Swivel in Cab-Over (Select Models)
  • 40” Mid-Ship TV in Living Area (Select Models)
  • Blu-Ray Player in Living Area
  • 32” TV in Bedroom Option (TV prep with-out option) (Optional) (Standard on Select Models)
  • Two (2) 15.5” TVs w/DVD Player in Bunk Bed Area (Optional) (Standard on Select Models)
  • Exterior 32” TV on Swivel Bracket with Bluetooth® Sound Bar and Radio (Optional)
  • Digital TV Antenna
  • Cable TV Ready
  • HD/DSS Satellite Ready
Electrical & Plumbing
  • Onan® RV QG 4000 Gas Generator
  • Automatic Generator Start (Select Models)
  • WIFI Ranger / WIFI Extender
  • 30-amp Shoreline Power Cord
  • Automatic Shoreline-to-Generator Transfer Switch
  • 13,500 BTU Roof Front Air Conditioner (Select Models)
  • 15,000 BTU Roof Front Air Conditioner (Optional) (Standard on Select Models)
  • Dual 11,000 BTU Roof Air Conditioners IPO 15,000 BTU Air Conditioner (Optional)
  • Battery Disconnect Switch
  • Second Auxiliary House Battery (Optional) (Standard on Select Models)
  • Battery Tray for Four (4) Batteries (Select Models)
  • Solar Prep (includes solar controller)
  • Whole Coach Water Filtration System (Select Models)
  • 6-gallon DSI Gas/Electric Water Heater (Select Models)
  • Water Heater Bypass System (Select Models)
  • Tankless Water Heater (Select Models)
  • Outside Shower (Optional) (Standard on Select Models)
  • 360 Siphon RV Holding Tank Vent Cap
  • 1” Fresh Water Tank Drain
  • Exterior LP Connection (Select Models)
  • Holding Tanks with Heat Pads (Optional) (Standard on Select Models)
  • Enclosed Sewer Area for Sewer Tank Valves (Select Models)
  • Black Tank Flush System
  • Systems Control Center
  • 1800-watt Inverter (Select Models)
  • Rapid Camp® Wireless Control System (Select Models)

Premier Package (Standard on Select Models)

  • 2-Burner Gas Cooktop with Single Induction Cooktop
  • 30” Over-the-Range Convection Microwave Oven
  • Solid Surface Kitchen Countertop
  • Shower with Glass Door
  • Premium Window Privacy Roller Shades
  • Whole Coach Water Filtration System
  • Enclosed Sewer Area for Sewer Tank Valves
  • Tankless Water Heater
See us for a complete list of features and available options!
All standard features and specifications are subject to change.

Manu-Facts:

Thor Motor Coach (TMC) is the #1 Motorhome Brand in North America, producing nearly 1 out of every 4 motorhomes sold each year. Formed in 2010 as a strategic merger of Damon Motor Coach and Four Winds International, we build many of the world’s most recognized motorhomes. As an industry leader in introducing cutting­edge innovations, we offer a wide range of styles, sizes, floor plans and features – delivering coaches that fit every customer’s lifestyle and budget.

Our diverse product lineup includes many of the world’s most recognized gas­ and diesel­ powered Class A and Class C motorhomes, including the Four Winds, Challenger, Chateau, ACE and Tuscany models. By building a variety of unique styles, sizes and floor plans, we offer motorhomes that feel custom ­made – at a truly competitive price.

With so many unique models available, TMC motorhomes are priced to fit anyone’s budget – from families buying their first motorhome, to full­timers looking for a roaming “dream home.” No matter how you choose to spend your time or your money, there’s a TMC motorhome that fits your needs.
